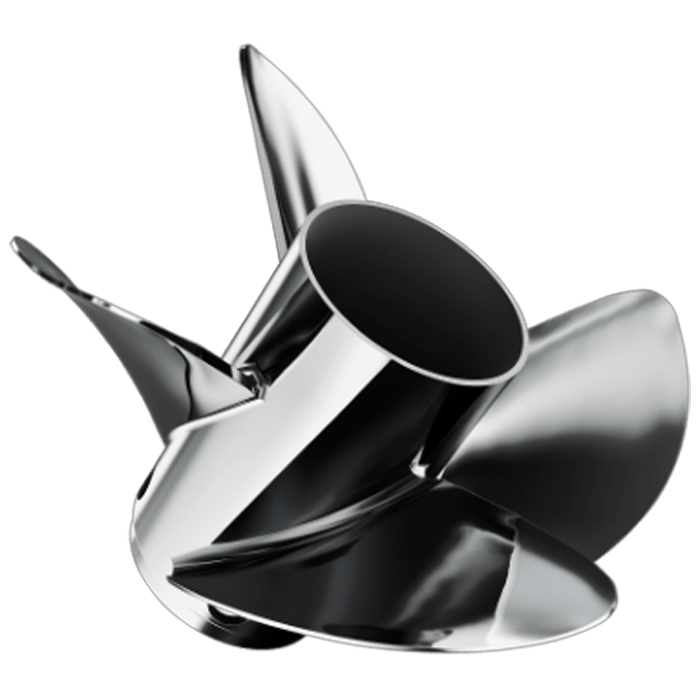

Mercury Revolution 4 XP 14.6 x 25 RH – 8M0113956

Mercury Revolution 4 XP 14.6 x 25 RH – 8M0113956
The Mercury Revolution 4 propeller is an incredible and versatile 4-blade propeller for a wide range of applications, known for a great hole-shot, staying hooked up without blowouts, and the ability to provide a low-speed plane off for slower tow sport activity. The Revolution 4 XP creates quicker planing because the long barrel design acts like a miniature trim tab. Thanks to an ample amount of tip cup, it also provides excellent handling through turns and rough seas.

Product Features:

• Hand crafted by Mercury Racing Propeller Artisans
• Improve fuel economy and top-end speed with the Revolution 4 XP blend of tip cup for bow lift and extended straight barrel for maximum stern lift
• Unmatched planning performance and mid-range handling for multi-engine center consoles
• Offers more stern lift than the Bravo I FS to improve the angle of attack in certain applications
• Enabled with 4-hole Performance Vent System (PVS) to allow optimal hole-shot customization


Specifications:

• Diameter: 14.6
• Pitch: 25
• Rotation: Standard (Right Hand)
• Number of Blades: 4
• Performance Vent System (PVS) : Yes
• Material: Stainless Steel
• Hub: Flo-Torq II (Sold Separately)

Fits:

• 150-400HP and 450R HD gear case outboards only
• Sterndrives up to 600HP


Links to all available hub kits:

• Flo-Torq Hub Kit – Part # 835257Q5
• Flo-Torq II Hub Kit – Part # 835257K6 (835257Q6)
• Flo-Torq II Solid Hub Kit – Part # 835258K2 (835258Q2)
• Flo-Torq II Hub Kit for Yamaha – Part # 835274Q1
• Flo-Torq HD Hub Kit – Part # 840389K06
• Flo-Torq SSR HD Hub Kit – Part # 8M0101601 (8M0101603)
• Flo-Torq SSR Solid Hub Kit – Part # 8M0101602
• Flo-Torq SSR Hub Kit – Part # 8M0150151
• RBX 350 Yamaha Hub Kit – Part # RBX127 – 879987

Installation Instructions
